The given circuit works as :

A

AND gate

B

NOR gate

C

NAND gate

D

OR gate

Explanation

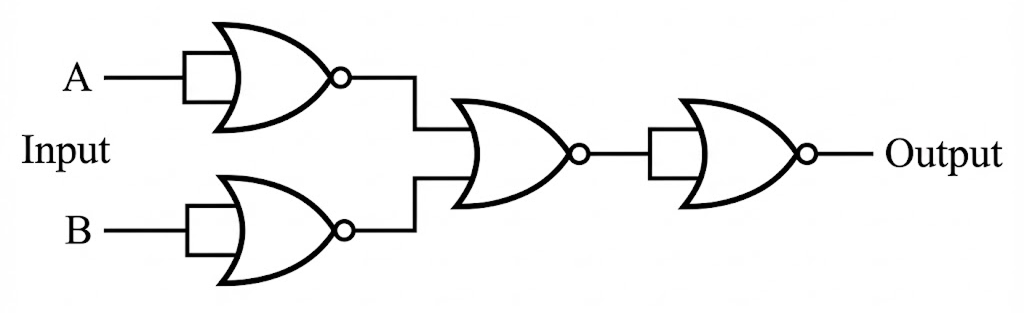

Question Image

P = \bar{A}

Q = \bar{B}

R = \overline{\bar{A} + \bar{B}} = \overline{\overline{AB}} = AB

S = \overline{AB} \quad \Rightarrow \text{NAND Gate}
