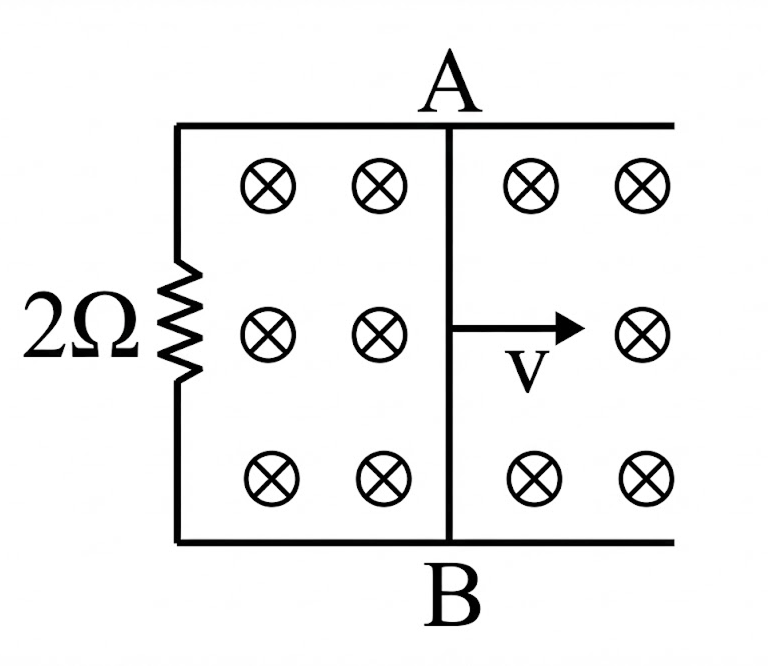

A 1 m long metal rod AB completes the circuit as shown in figure. The area of circuit is perpendicular to the magnetic field of 0.10 T. If the resistance of the total circuit is 2Omega then the force needed to move the rod towards right with constant speed (v) of 1.5 m/s is ________ N.

To maintain constant speed F_ext = F_B => F_ext = i l B = ( (v B l / R) ) l B = (B^2 l^2 v / R) = ((0.1)^2 x (1)^2 x 1.5 / 2) = 7.5 x 10^-3 N

A 1 m long metal rod AB completes the circuit as shown ... | null (Physics) | DivineJEE

JEE Mains 2026 21st January Shift 1

Physics

1\text{ m}

long metal rod AB completes the circuit as shown in figure. The area of circuit is perpendicular to the magnetic field of

0.10\text{ T}

. If the resistance of the total circuit is

2\Omega

then the force needed to move the rod towards right with constant speed (v) of

1.5\text{ m/s}

is ________ N.

7.5 imes 10^{-2}

5.7 imes 10^{-3}

5.7 imes 10^{-2}

7.5 imes 10^{-3}

To maintain constant speed

F_{\text{ext}} = F_B

\Rightarrow F_{\text{ext}} = i l B

= \left( \frac{v B l}{R} \right) l B

= \frac{B^2 l^2 v}{R}

= \frac{(0.1)^2 \times (1)^2 \times 1.5}{2}

= 7.5 \times 10^{-3}\text{ N}
